Products
Handheld UHF RFID Reader
CTR86H-J67
Handheld UHF RFID Reader
No items found.

Product Overview

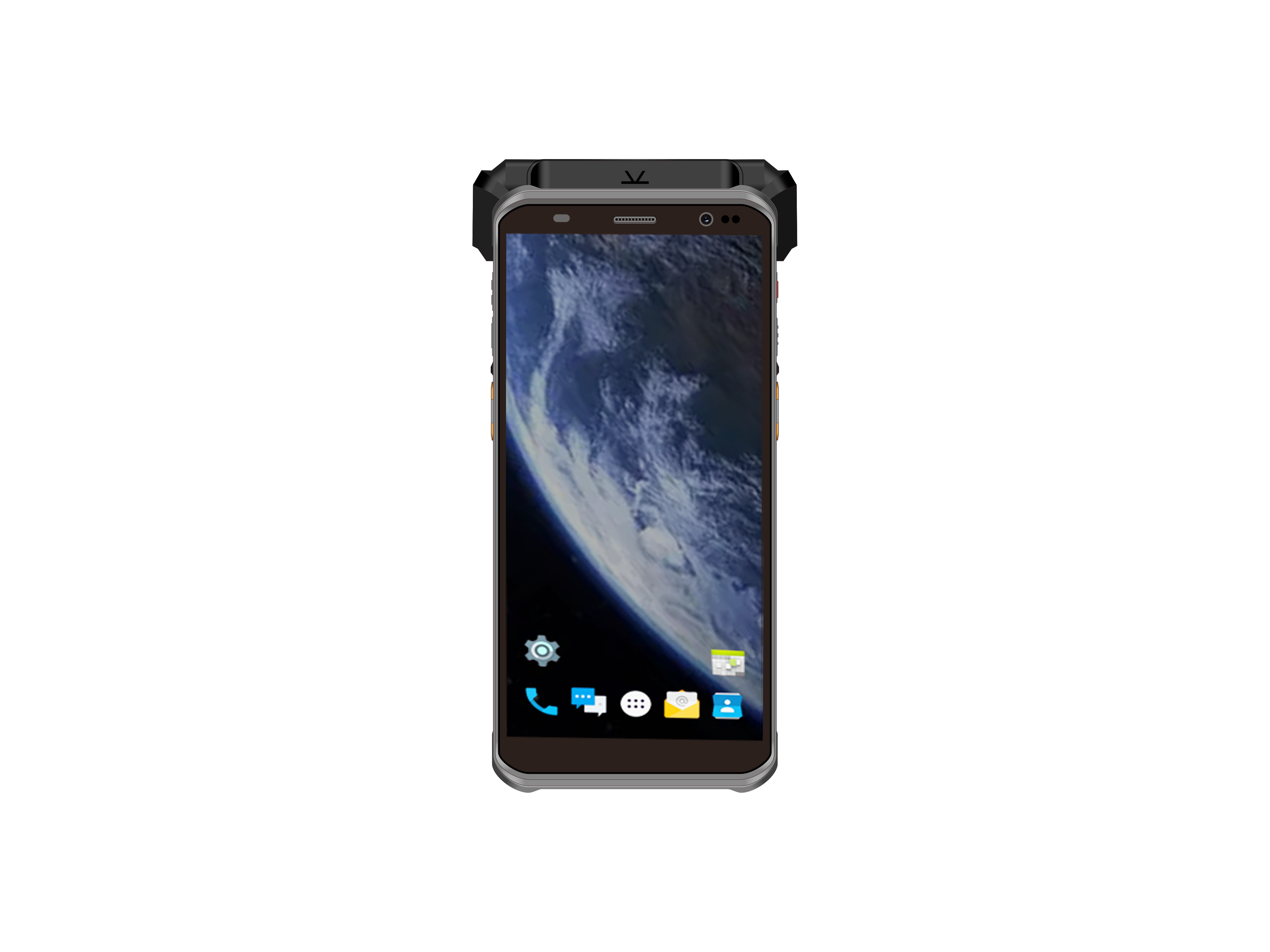

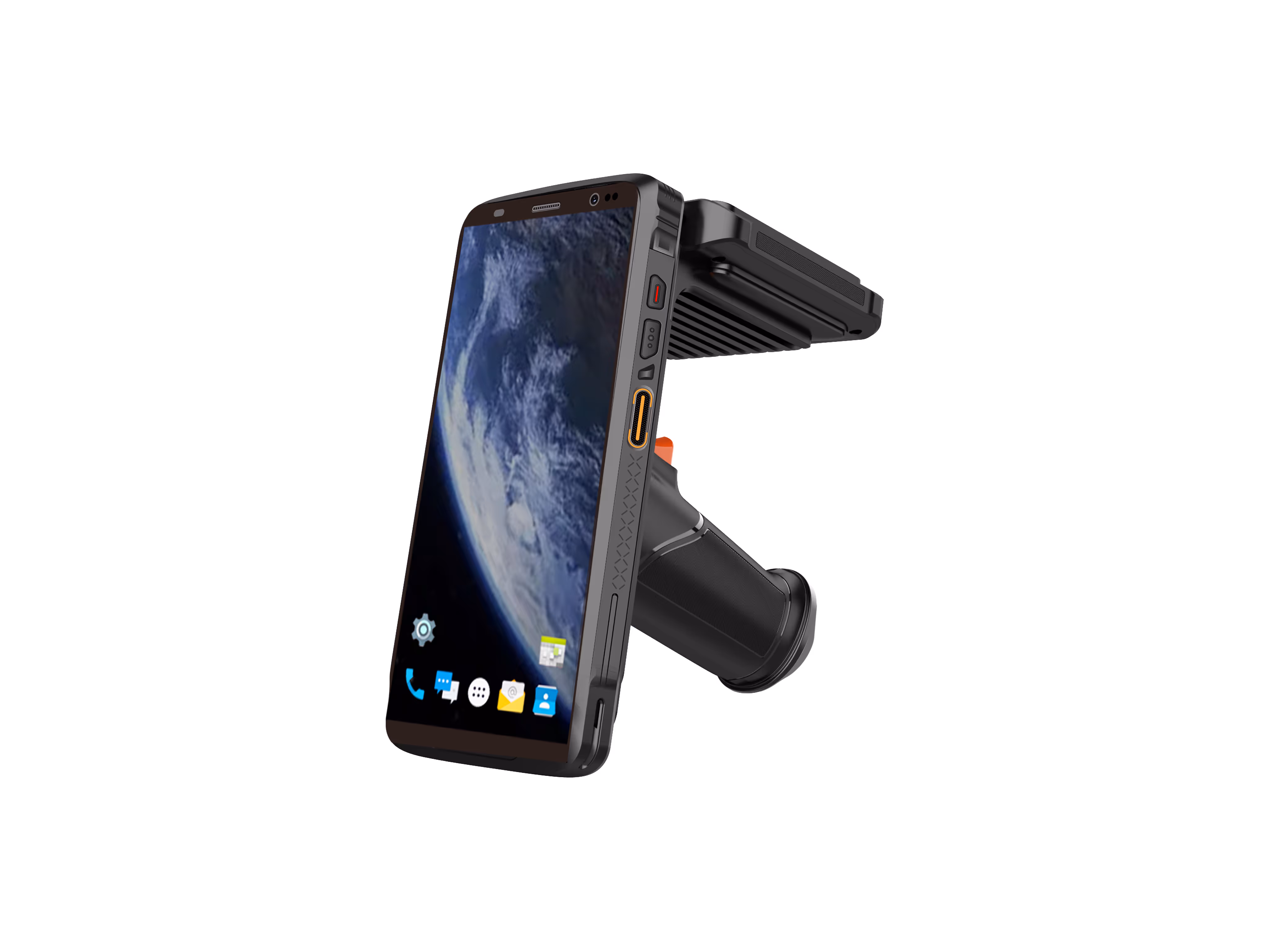

The CTR86H-J67 is a high-performance UHF (Ultra-High Frequency) portable reader-writer, featuring IP67 protection rating, 1.2-meter drop resistance, Android 10.0 operating system, and a fast-running octa-core processor.

‍

Use Cases

Rugged PDA UHF RFID reader Mobile computer Inventory management Warehouse logistics

Warehouse Inventory Management

Rapidly identifies and counts pallets or items using long-range UHF RFID, significantly improving efficiency.

‍

Rugged PDA UHF RFID reader Mobile computer Inventory management Warehouse logistics

Logistics and Sorting Operations

Utilizes high-speed barcode scanning and UHF RFID for accurate parcel tracking and sorting in distribution centers.

‍

Rugged PDA UHF RFID reader Mobile computer Inventory management Warehouse logistics

Field Asset Inspection and Maintenance

The rugged design and all-day battery life enable technicians to inspect outdoor assets, scan identification codes, and update records on the go.

‍

Key Features

Protocol Standards: EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B UHF Antenna: 4.5dBi air dielectric antenna Dual-mode capacitive touch, supports stylus, bare finger, or gloved finger input IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w (2.4G/5G Dual-Band Wi-Fi) GPS supports:GPS-L1, A-GPS, GLONASS, BeiDou, Galileo
Long-Range UHF RFID Reading

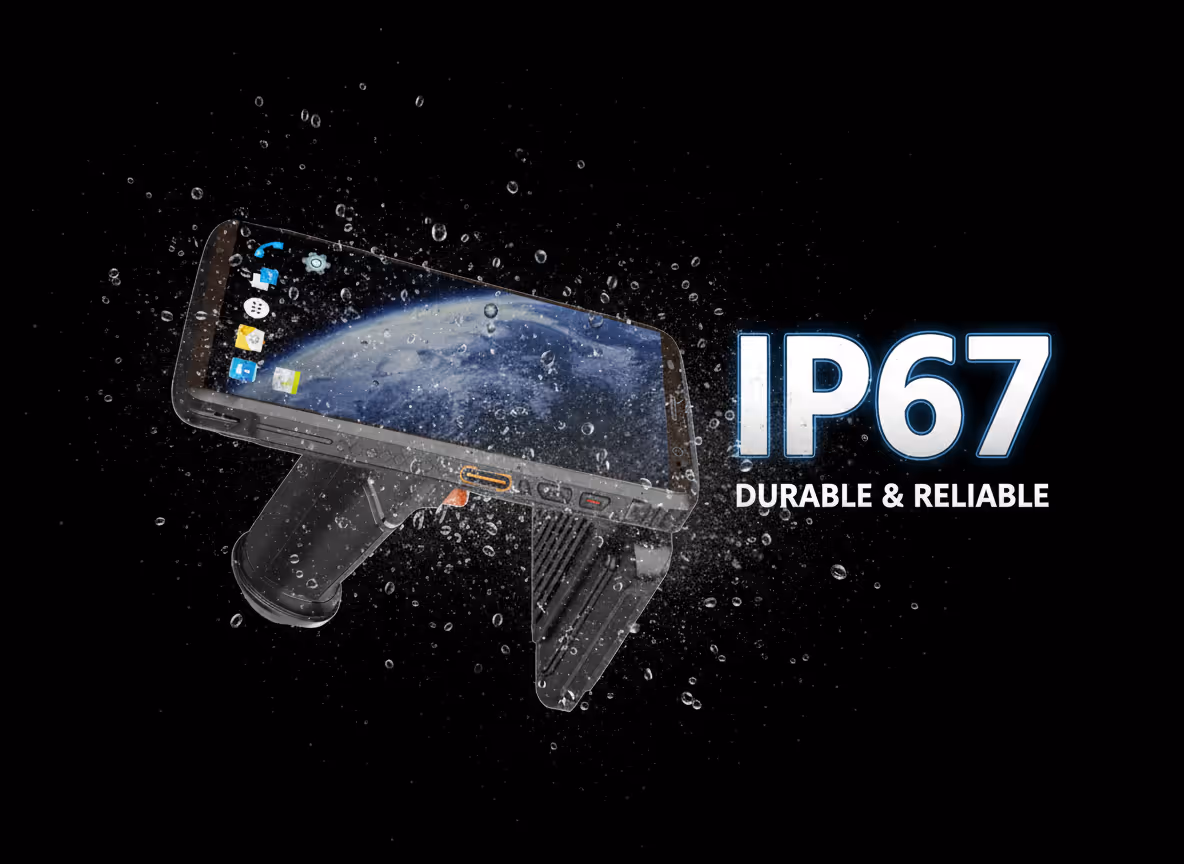

Industrial Ruggedness (IP67 & 1.2m Drop)

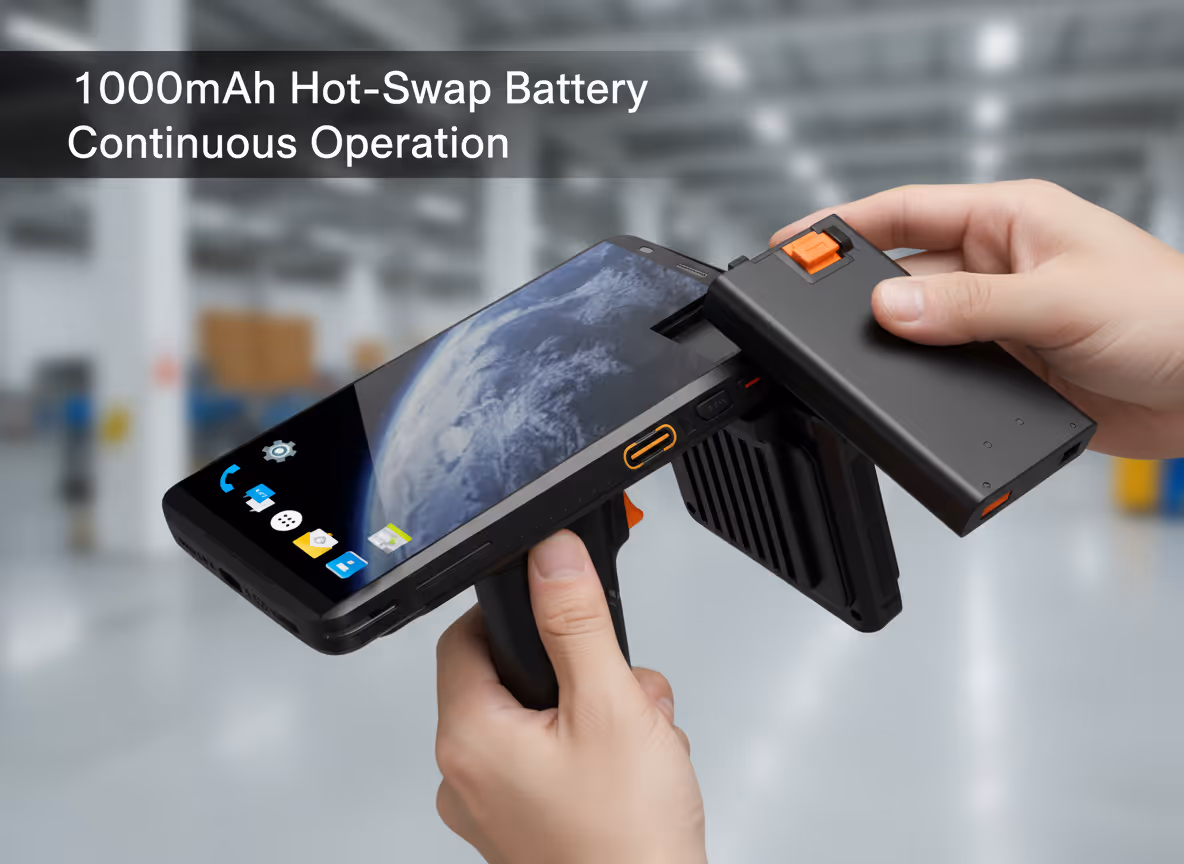

High-Capacity Hot-Swappable Battery

Tech Specs

Physical Characteristics
Dimensions
173.5 × 77.4 × 25 mm
Weight
567 g
Device Operating System Support
Operating System
OS support
Certifications/Compliance
Certification
/Standard
China, Korea, Malaysia, Japan US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208
Other Supported
Supported
Protocol Standards: EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B UHF Antenna: 4.5dBi air dielectric antenna Dual-mode capacitive touch, supports stylus, bare finger, or gloved finger input IEEE 802.11 ac/a/b/g/n/ax ready/d/e/h/i/j/k/r/v/w (2.4G/5G Dual-Band Wi-Fi) GPS supports:GPS-L1, A-GPS, GLONASS, BeiDou, Galileo
Connect Type
/
Speed
Multi-tag Read Speed: > 900 tags/sec
Key Technical Specification
Key Specs

Rugged Rating: IP67, 1.2m drop to concrete

UHF RFID Read Range: >14 meters

Battery Capacity: 10000mAh (hot-swappable)

Display: 6-inch FHD+ (1080x2160) Industrial IPS, 450 nits

Sealing Grade: IP67

Related Documents
Technical Specification
Primary Applications
Rugged PDA UHF RFID reader Mobile computer Inventory management Warehouse logistics
